| CAMERA | |
|---|---|
| Image Sensor | 1/2.7″ Progressive Scan CMOS Sensor |
| Lens | Focal Length: 4.0 mm Aperture: F1.6 Field of View: 105.4° (Diagonal), 88.0°(Horizontal), 46.0°(Vertical) |

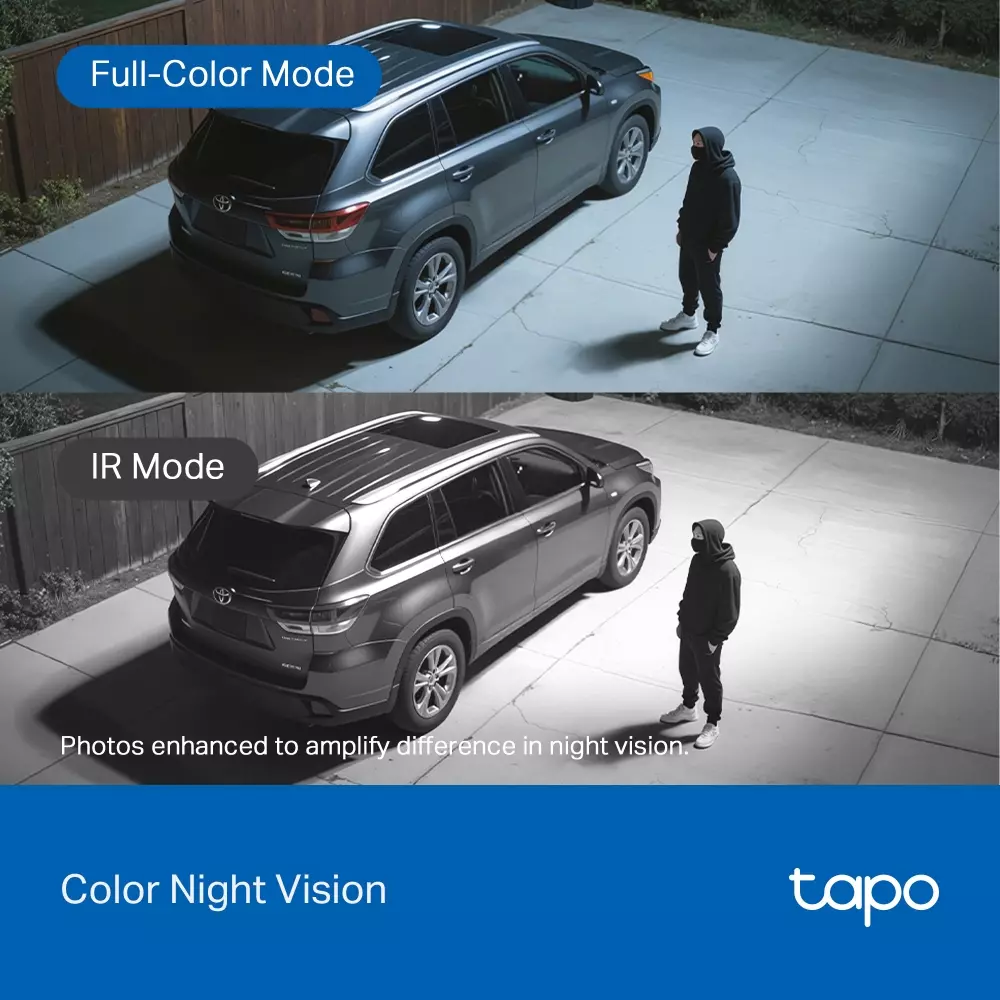

| Night Vision | Infrared Night Vision (52 ft / 16 m) Color Night Vision (52 ft / 16 m) |
| Lighting | 2× Built-in Spotlights |
| Interface & Button | 1× Power Button 1× RESET Button 1× MicroSD Card Slot (Up to 512GB) |
| Pan/Tilt Range | Pan Mechanical Range: 340° (360° Pan Coverage) Tilt Mechanical Range: 90° (130° Tilt Coverage) |
| SOLAR PANEL | |
|---|---|
| Connection Capacity | A solar panel can only connect to one camera. |
| Output Port | Type-C |
| VIDEO & AUDIO | |
|---|---|

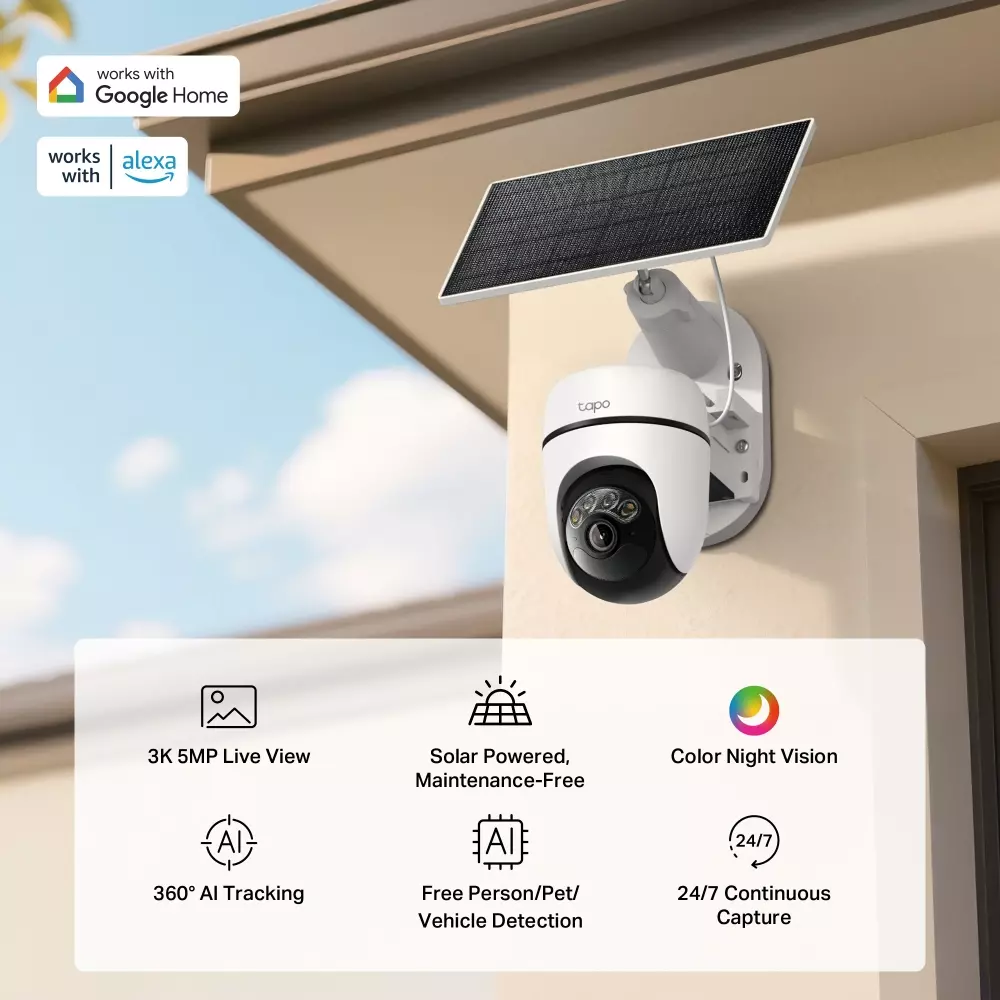

| Maximum Resolution | 3K 5MP (2880 × 1620 px) |
| Frame Rate | 15 fps |
| Digital Zoom | 13.5 |
| Video Compression | H.264 |
| Live View | YES |
| Image Enhancement | 3DNR WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 78.9 dBA (Level measured at 10 cm distance) |
| STORAGE | |
|---|---|
| Local Storage | MicroSD Card Slot on Camera (Up to 512 GB, microSD card not included) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
| DETECTION and NOTIFICATIONS | |
|---|---|
| Sensor | Motion Sensor Ambient Light Sensors |
| AI Detection | Motion Detection Person Detection Vehicle Detection Pet Detection |
| Activity Zones | Yes |
| Output Notification | System Notification System Notification with Snapshot (Tapo Care Services) |
| NETWORK | |
|---|---|
| Network Connectivity | Connect via Wi-Fi |
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
| SECURITY | |
|---|---|
| Security | 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK |
| POWER | |
|---|---|
| Power Source | 5V DC Power Adapter (Not Included) Built-in Rechargeable Lithium-ion Battery Solar Panel: Tapo A201 |
| Input Voltage | 5.0 V, 2.0 A |
| Output Voltage | / |
| GENERAL | |
|---|---|
| Smart Integration | Google Assistant, Amazon Alexa |
| Weather Resistance | IP65 for both camera and solar panel |
| System Requirements | Tapo App: iOS 12.0 or higher, Android 7.0 or higher |

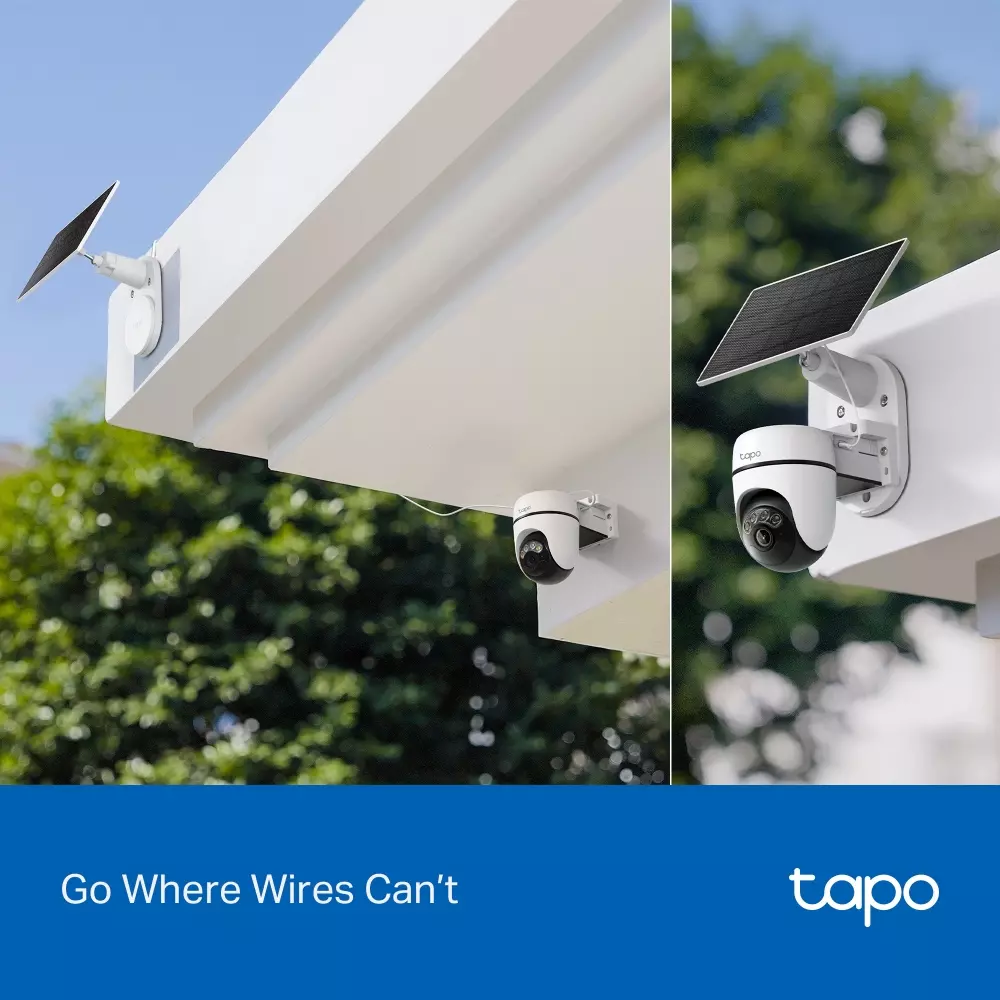

| Mounting Options | Wall-Mounted Eave-Mounted Pole-Mounted (Pole-Mounting loops required but not included) |
| Operating Temperature | -20°C to 45°C (-4°F to 113°F) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 0%~90% RH, Non-condensing |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| Dimensions ( W x D x H ) | Camera Dimensions: 141 x 128 x 84 mm (5.55 x 5.04 x 3.31 in) Solar Panel Dimensions: 173.4 x 120.4 x 15.7 mm (6.83 x 4.74 x 0.618 in) |

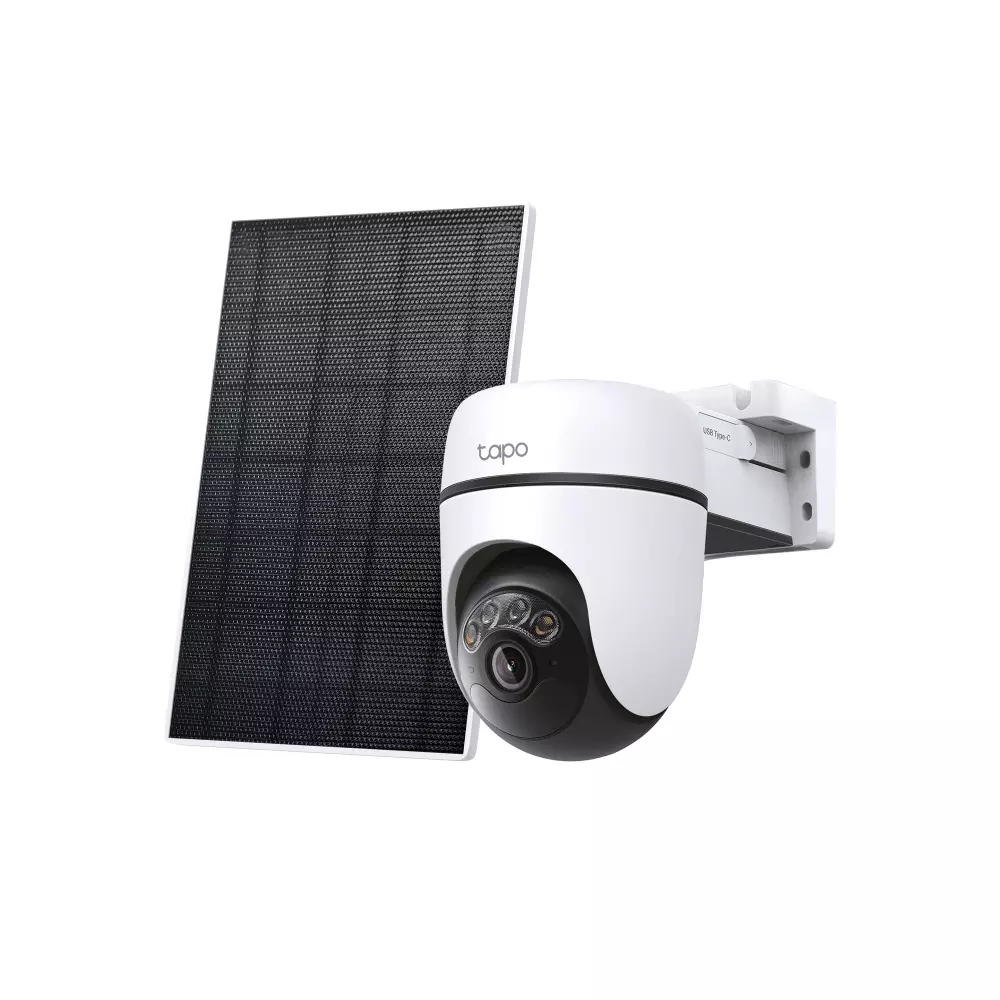

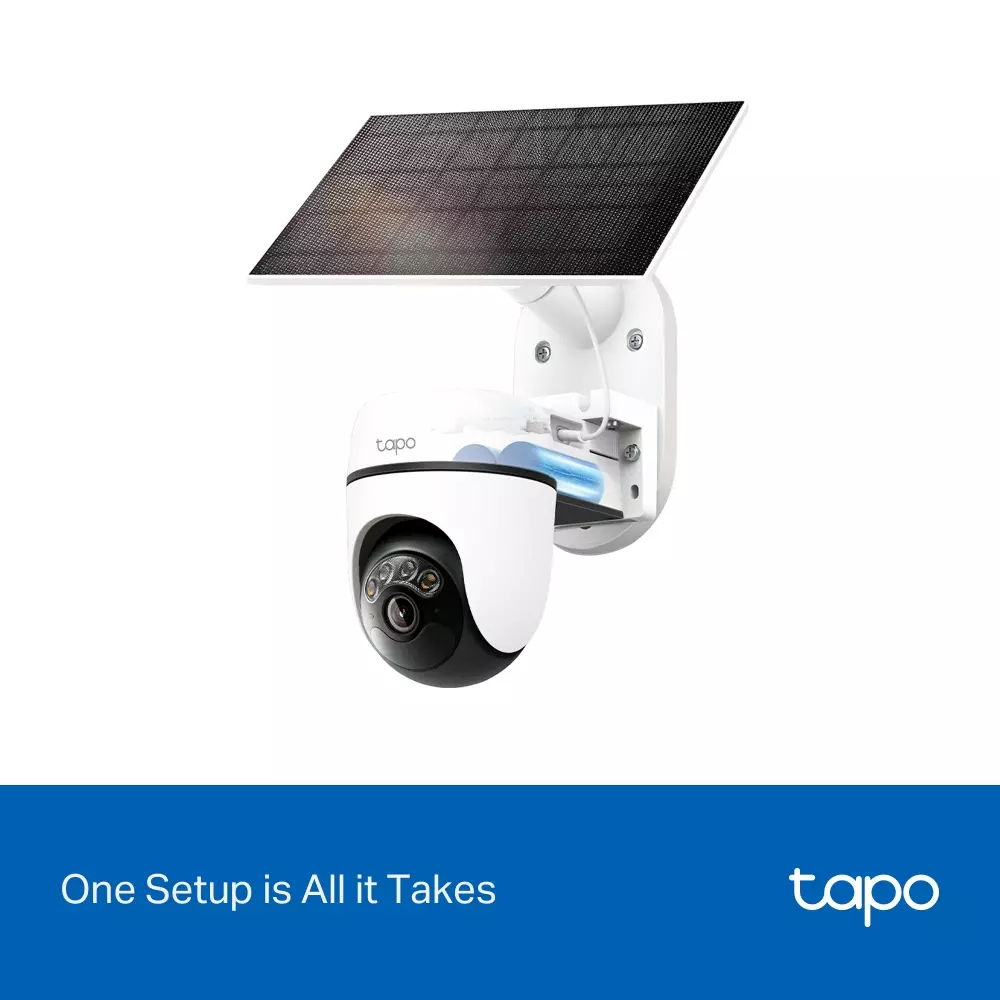

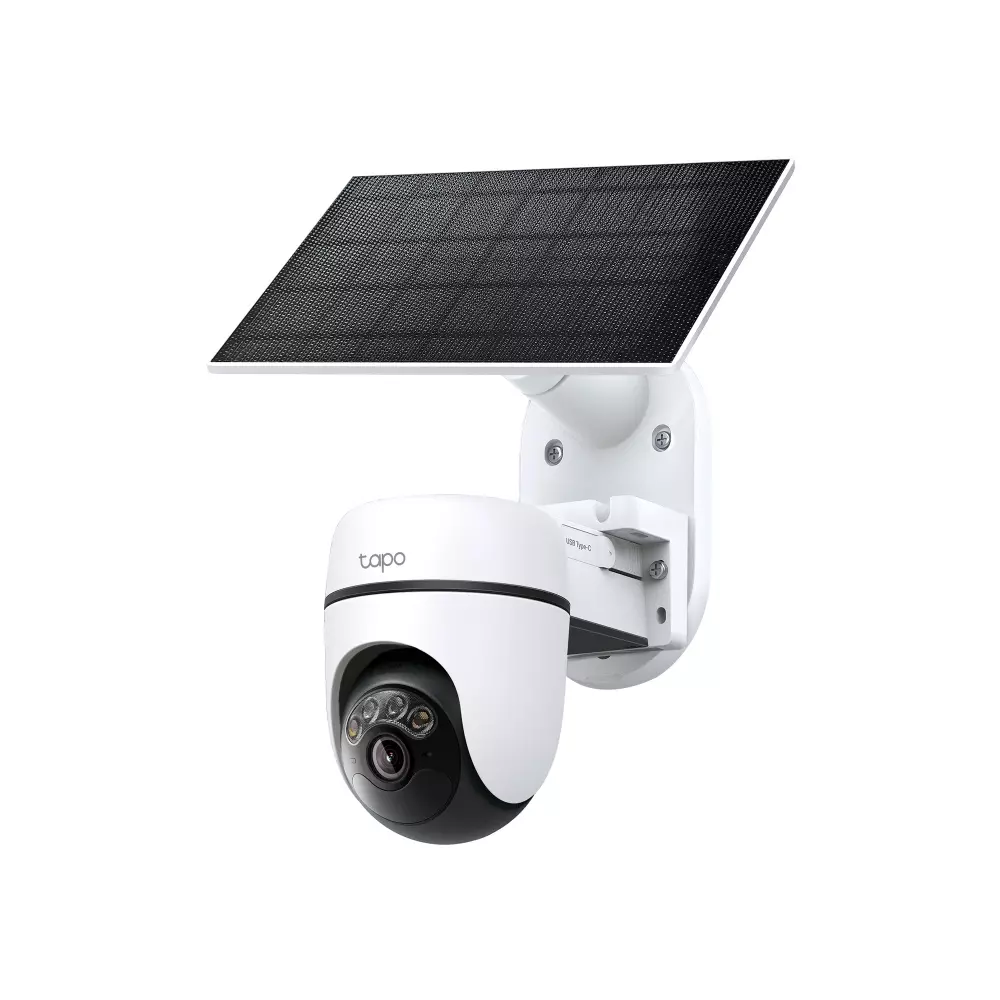

| Package Content | Tapo C630 Camera × 1 Tapo A201 Solar Panel × 1 Tapo A201 Solar Panel Bracket × 1 Base Cover × 1 USB Adapter Cable × 1 Extension Wire × 1 Cable Zip Tie × 1 Mounting Screws and Anchors Mounting Template Stickers Quick Start Guide |
| Certifications | CE, FCC, JRF, VCCI, RCM, NTRA, NCC, BSMI, DOE, CEC, IP65, RoHS |
