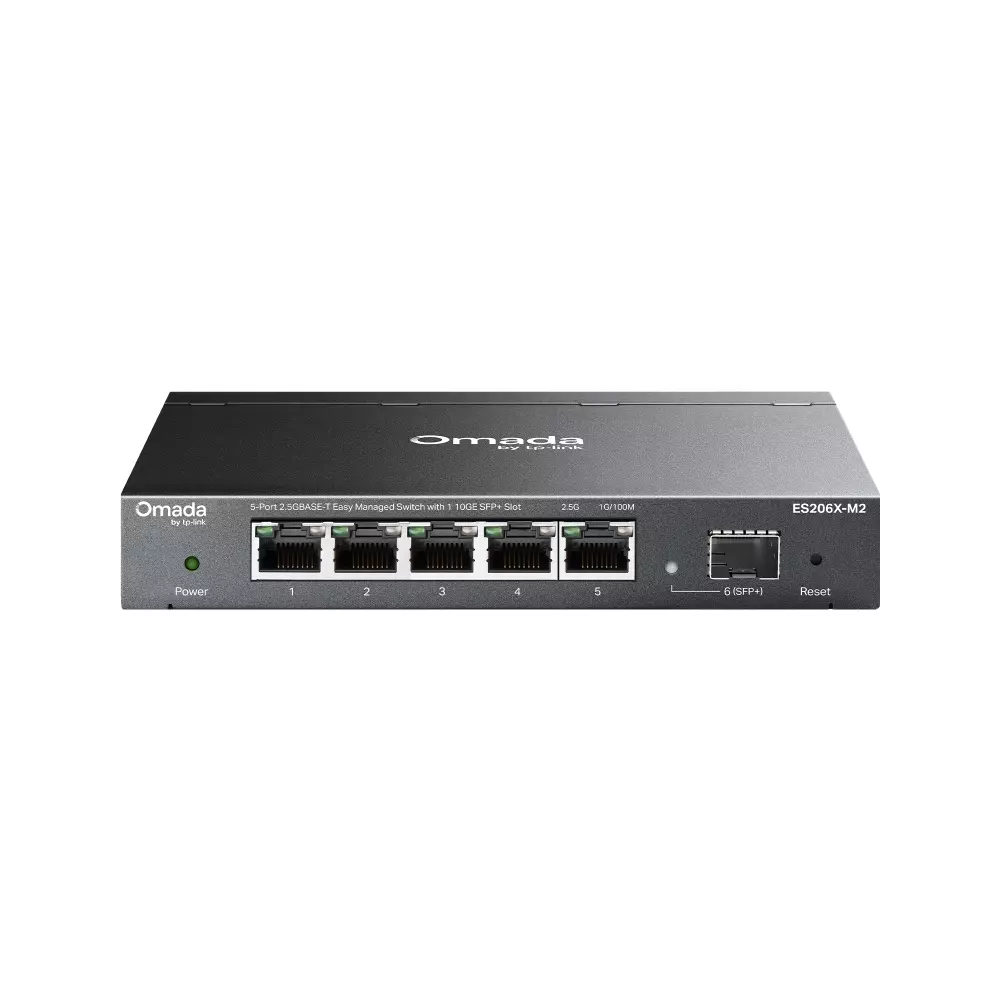

TP-Link ES206X-M2

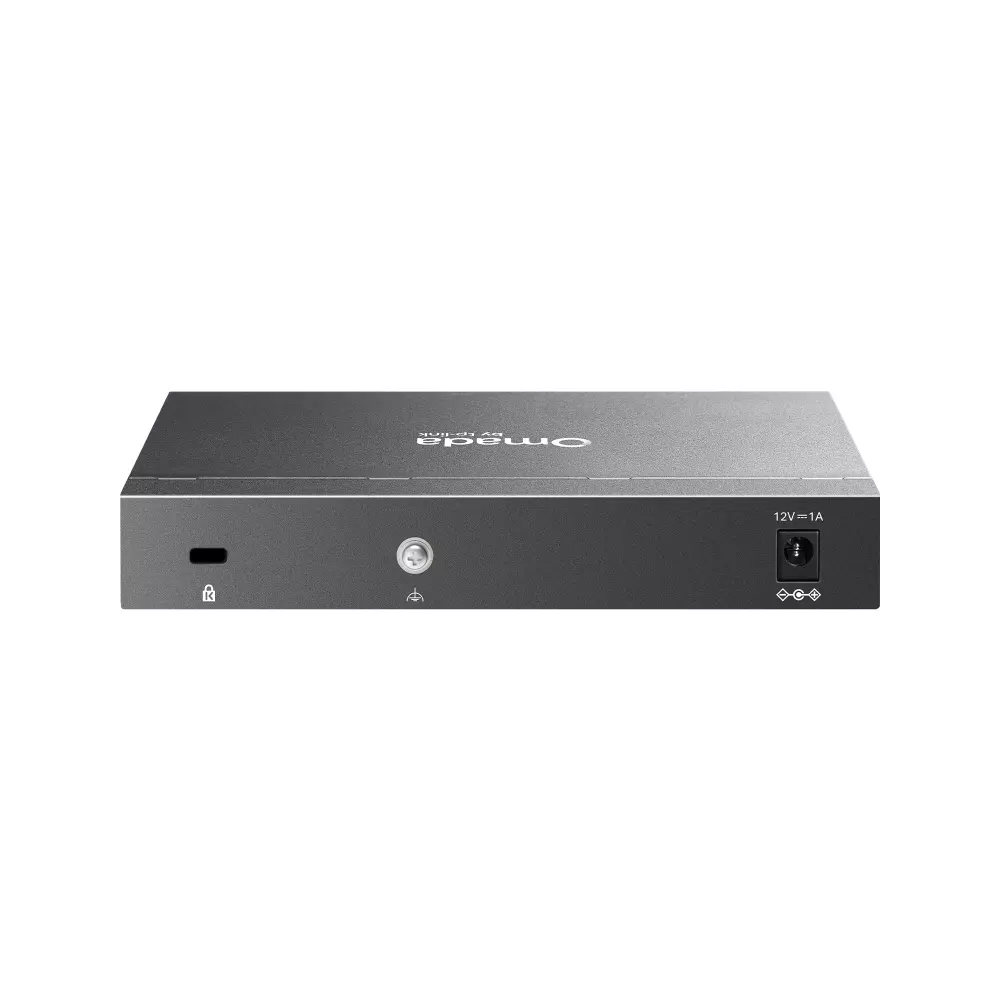

TP-Link ES206X-M2 - Image 2

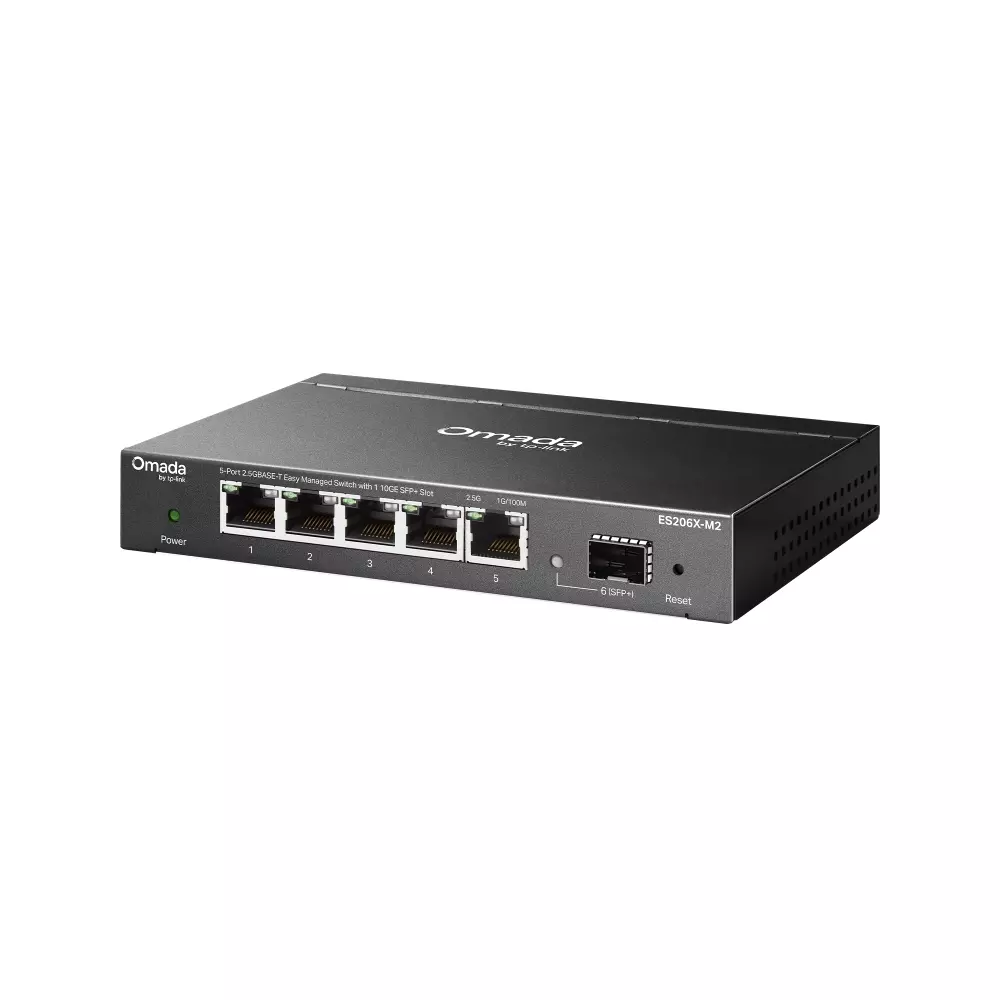

TP-Link ES206X-M2 - Image 3

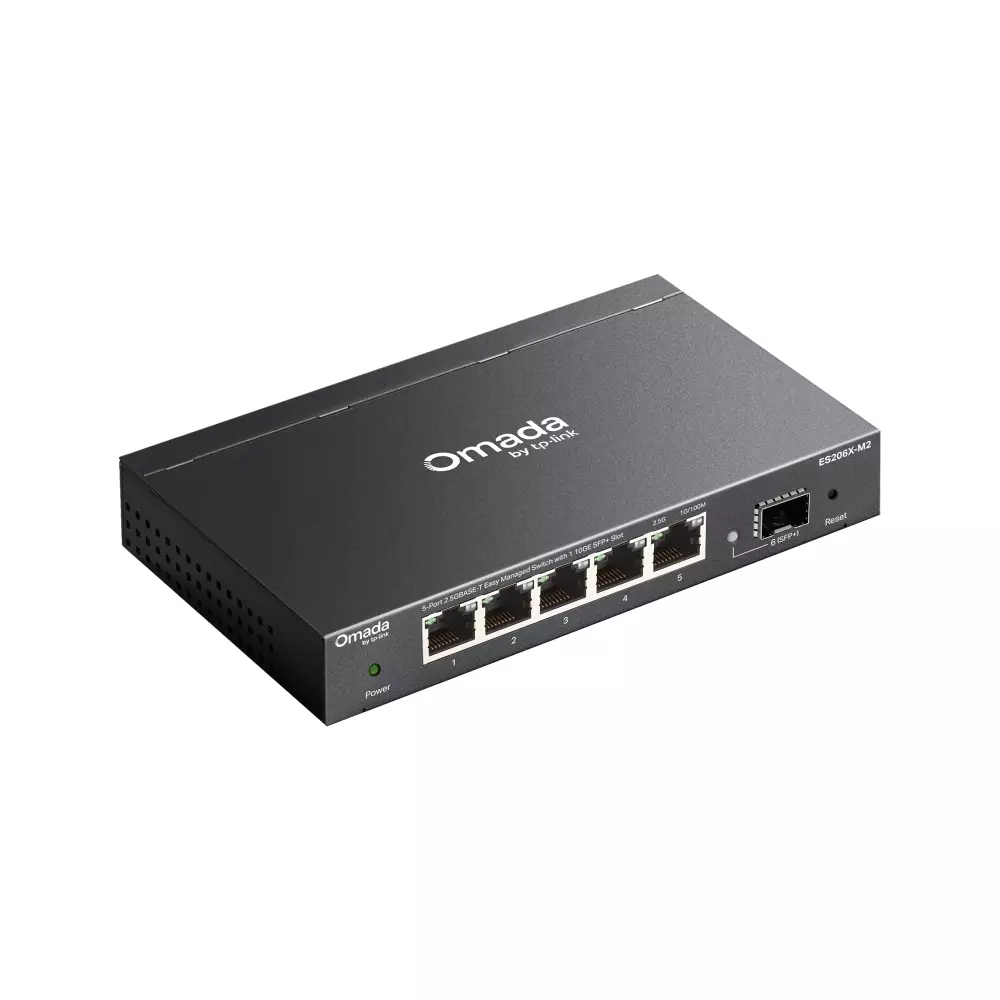

TP-Link ES206X-M2 - Image 4

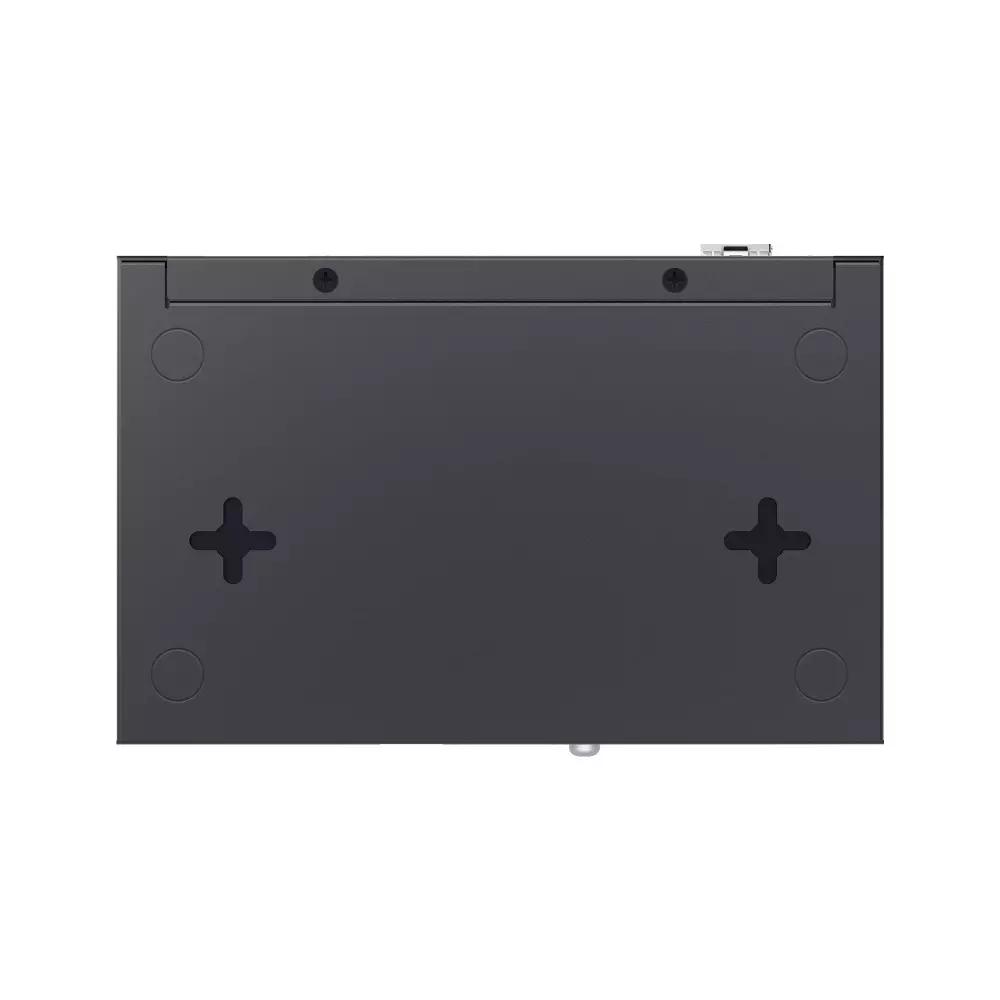

TP-Link ES206X-M2 - Image 5

TP-Link ES206X-M2

Omada 5-Port 2.5GBASE-T Easy Managed Switch with 1 10GE SFP+ Slot

Original price was: 179 ₼.Current price is: 162 ₼.

Birbank logo
Installment payment calculator with Birbank
Installment payment terms apply to the non-discounted price
0%
2 mon.
0%
3 mon.
0%
4 mon.
0%
5 mon.
0%
6 mon.
Monthly payment 89.5 ₼
Need installation too?Site visit and quote in Baku are freeOffice network setup →
Partner pricing›Expert help›

TP-Link ES206X-M2 is a compact 2.5 Gigabit switch from the Omada Easy Managed series. Five 2.5 Gbps RJ45 ports and one 10 Gbps SFP+ slot lift the gigabit limit for Wi-Fi 7 access points, NAS devices and workstations.

  • 5× 2.5 Gbps RJ45 ports — 2.5 times faster than gigabit on every port;
  • 1× 10 Gbps SFP+ slot — a high-speed uplink or NAS connection;
  • Plug-and-play — works right after connection, extra features are configured from a simple web interface;
  • Omada Cloud — centralised remote management via a web browser or the Omada app;
  • VLAN, IGMP Snooping and automatic loop prevention — network segmentation and stability;
  • Fanless metal housing — completely silent operation, suitable for office and home.

Designed for small office networks, video editing studios and for connecting Wi-Fi 7 / Wi-Fi 6E access points. Supplied with the official TP-Link partner warranty in Azerbaijan.

HARDWARE FEATURES
Interface • 5× 2.5 Gbps RJ45 Ports
• 1× 10 Gbps SFP+ Slot
• Auto-Negotiation/Auto MDI/MDIX
Fan Quantity Fanless
Installation • Desktop
• Wall Mount
Physical Security Lock √
Power Supply AC/DC Adapter (Input: 100-240V AC; Output: 12V DC/1A)
Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 100.7 × 25.4 mm)
Surge Protection ±6kV for Ethernet Ports
PERFORMANCE
Packet Buffer Memory 640 KB
Jumbo Frame 10 KB
Switching Capacity 45 Gbps
Packet Forwarding Rate 33.48 Mpps
MAC Address Table 16K
SOFTWARE FEATURES
Quality of Service • Port-based/802.1p/DSCP QoS△
• 8 Priority Queues
• Priority Schedule Mode
– WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
– Port-Based Rating Limit
• Storm Control
– Multiple Control Modes (kbps/pps)
– Broadcast/Multicast/Unknown-Unicast Control
L2 Features • Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
– 802.3x Flow Control
• Mirroring
– Port Mirroring
– One-to-One
– Many-to-One
– Ingress/Egress/Both
• Port Statistics
– Port Mirror Status
– Traffic Statistics
• 802.1ab LLDP
L2 Multicast • IGMP Snooping
– IGMP v1/v2/v3 Snooping
– Fast Leave
VLAN • MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
– Max 32 VLAN Groups
– 4K VID
Transmission Method Store-And-Forward
Management Features
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
Management Features • Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration†
OTHERS
Certification FCC, CE, RoHS
Package Content • ES206X-M2
• Power Adapter
• Rubber Feet
• Installation Guide
Environment • Operating Temperature: -5℃~40℃ (23℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

Reviews

There are no reviews yet.

Be the first to review “TP-Link ES206X-M2”

Your email address will not be published. Required fields are marked *

Related Products

What TP-Link ES206X-M2 is for

TP-Link ES206X-M2 is a switch for extending a wired network. People buy one when the router has run out of ports and cameras, computers, a printer, an NVR and access points all need to join the same network. A wired connection is always more stable and lower-latency than Wi-Fi.

Buying advice: take 30–50% more ports than you need today, so you do not have to replace the switch when another camera or computer arrives. If cameras will be connected, choose a model with PoE ports and make sure the power budget (W) exceeds the total draw of those cameras.

Key specifications

5× 2.5 Gbps RJ45 ports2.5 times faster than gigabit on every port;
1× 10 Gbps SFP+ slota high-speed uplink or NAS connection;
Plug-and-playworks right after connection, extra features are configured from a simple web interface;
Omada Cloudcentralised remote management via a web browser or the Omada app;
VLAN, IGMP Snooping and automatic loop preventionnetwork segmentation and stability;
Fanless metal housingcompletely silent operation, suitable for office and home.

Price in Baku, delivery and installation

The current price on the site is 162 ₼. It includes the official TP-Link warranty, delivery in Baku and shipping to the regions on request.

If you also need installation, our Office network setup service starts from 200 ₼; the site visit and quote in Baku are free and we give a 6-month warranty.

Before you choose

For a comparison with the closest models, a price table and buying advice, see the guide for this category.

A detailed article on this topicHow to Choose a PoE Switch for IP Cameras and Access Points Read →

Frequently asked questions about TP-Link ES206X-M2

What is the difference between managed and unmanaged?

An unmanaged switch works the moment you plug it in and needs no configuration — enough for a home or a small office. Managed (and Easy Managed) models add VLANs, QoS, port isolation and monitoring, which you need when the camera network must be separated from the office network or traffic has to be controlled.

Does TP-Link ES206X-M2 power the cameras?

Only on models with PoE ports. With PoE, a single network cable to the camera is enough — no separate socket. The total power budget of the switch must be higher than the combined draw of the cameras.

Do you build office networks?

Yes. Our office network service covers cabling, placing switches and access points, and configuring VLANs and Wi-Fi. The site visit and quote in Baku are free.

What about warranty and delivery?

The device is sold by the official TP-Link partner in Azerbaijan with official warranty. Delivery in Baku is available and shipping to the regions is possible. If you need installation, see our services page.
