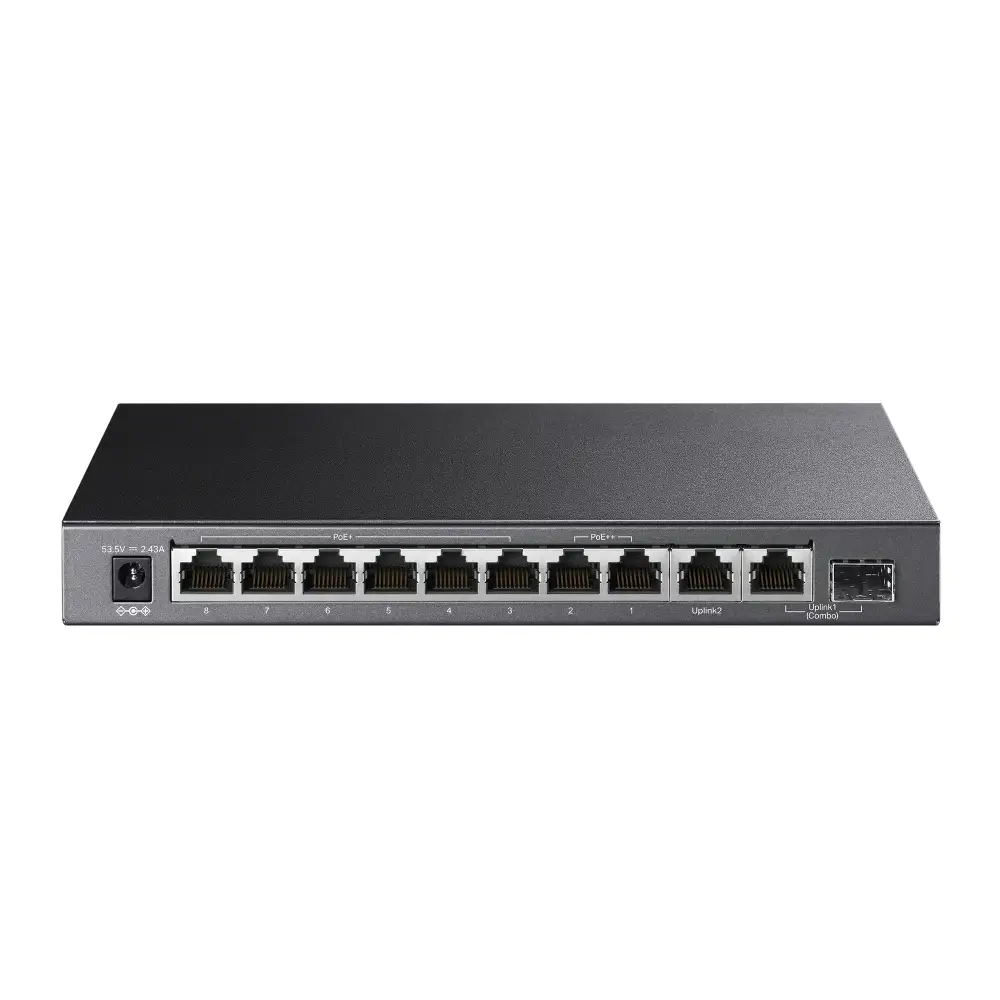

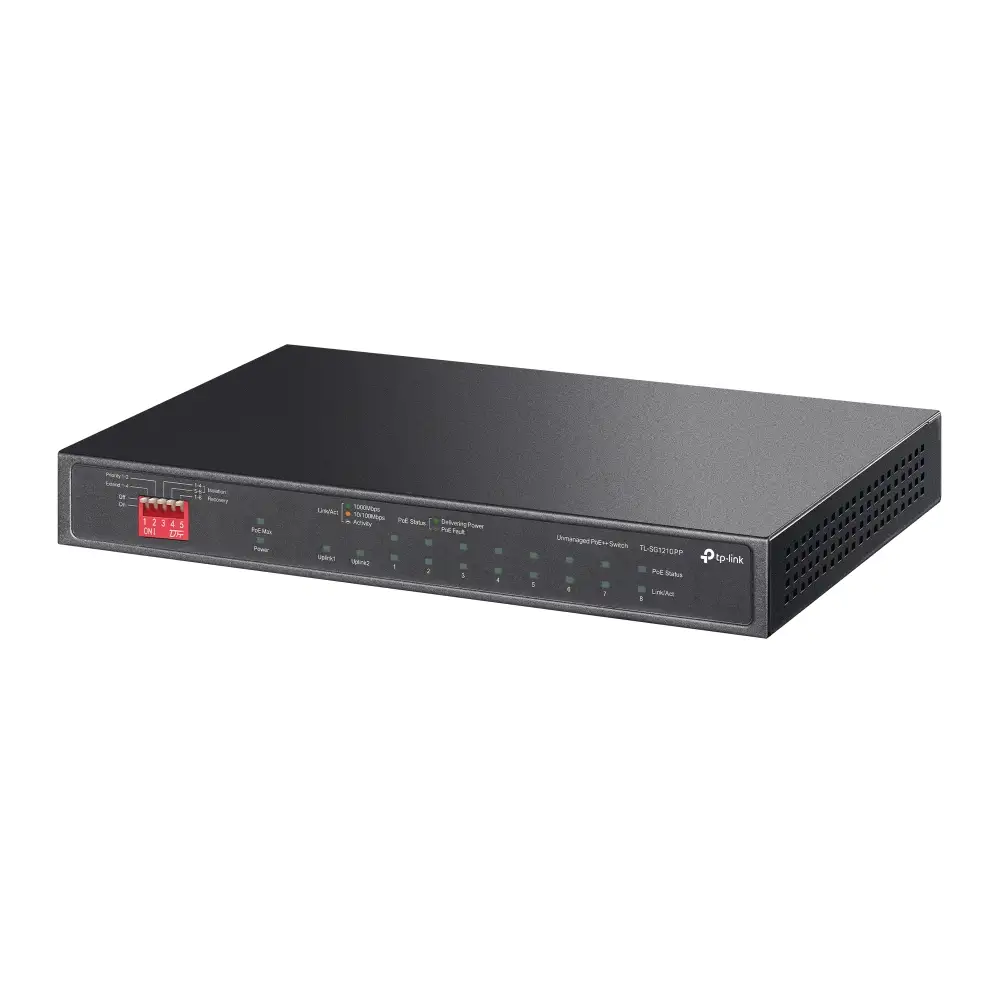

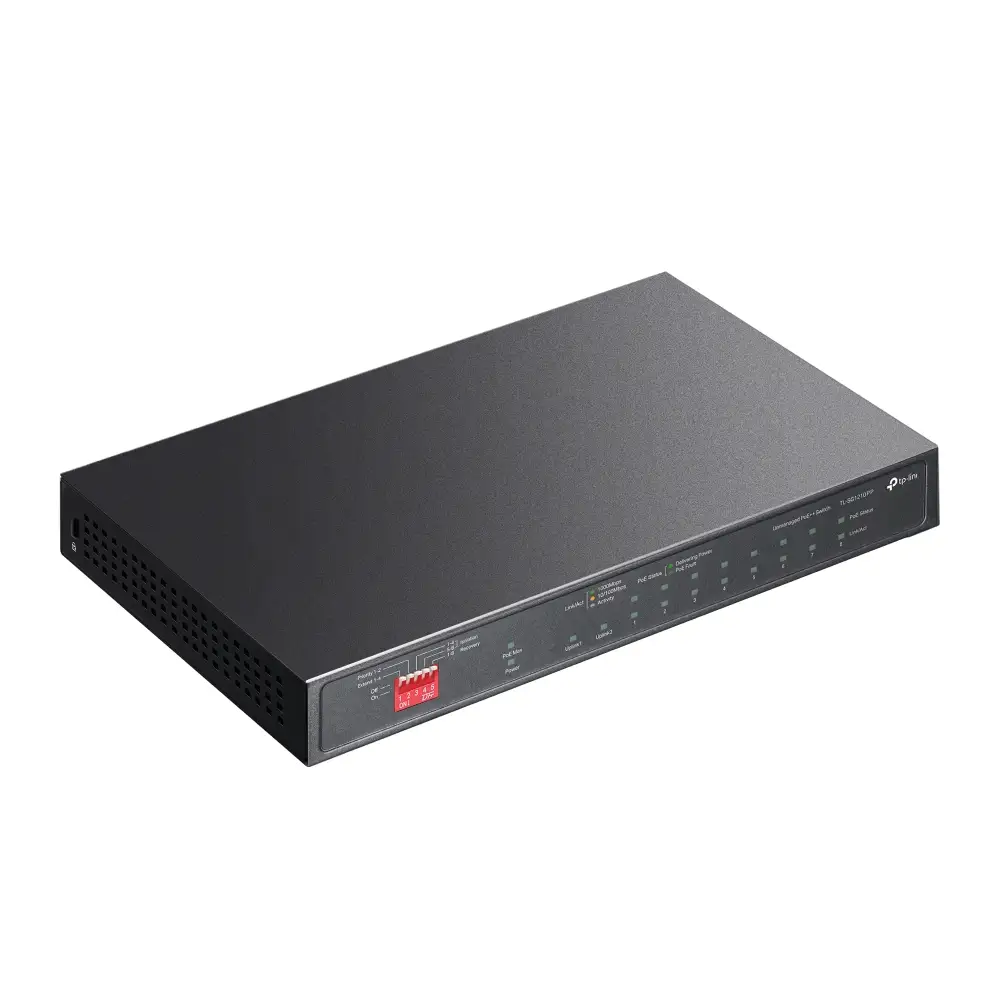

TP-Link TL-SG1210PP
10-Port Gigabit Desktop Switch with 6-Port PoE+ and 2-Port PoE++
313 ₼
Installment payment calculator with Birbank
Installment payment terms apply to the non-discounted price
Installment payment terms apply to the non-discounted price
Monthly payment
170 ₼
- 9× 10/100/1000Mbps RJ45 Ports, 1× 1000Mbps Combo SFP/RJ45 Port
- With 2× PoE++ ports and 6× PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at/bt compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE+ port and 60 W for PoE++ port
- Supports PoE Power up to 123 W for all PoE ports*
- Plug and Play, no configuration and installation required
- Up to 250m data and power transmitting range under Extend Mode**
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Priority Mode guarantees the quality of sensitive applications like video monitoring in critical business areas by prioritizing the data of ports 1-2
| HARDWARE FEATURES | |
|---|---|
| Interface | • 9× 10/100/1000Mbps RJ45 Ports, 1× 1000Mbps Combo SFP/RJ45 Port • AUTO Negotiation • AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 2.43 A) |
| Packet Forwarding Rate | 14.88 Mpps |
| PoE Ports (RJ45) | • Port 1-2 compliance with 802.3af/at/bt; Ports 3-8 compliance with 802.3af/at • Power Supply: 123 W |
| Mac Address Table | 4K |
| Switching Capacity | 20 Gbps |
| Dimensions ( W x D x H ) | 8.2 x 5.0 x 1.0 in (209 x 126 x 26 mm) |
| Max Power Consumption | • 8.7 W (220/50 Hz. no PD connected) • 144.1 W (220/50 Hz. with 123 W PD connected) |
| Max Heat Dissipation | • 29.67 BTU/h (220/50 Hz. no PD connected) • 491.38 BTU/h (220/50 Hz. with 123 W PD connected) |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | • Compatible With IEEE 802.3af/at/bt Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping • Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery (Ports 1-8) • Isolation Mode (Ports 1-4/5-8) • Priority Mode (Ports 1-2) |
| Transfer Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | • TL-SG1210PP • Power Adapter • Installation Guide |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
Related Products
16-Port Gigabit Desktop/Rackmount…
Original price was: 137 ₼.124 ₼Current price is: 124 ₼.
24-Port Gigabit Desktop/Rackmount…
Original price was: 189 ₼.171 ₼Current price is: 171 ₼.
5-Port 10/100Mbps Desktop…
Original price was: 16 ₼.14 ₼Current price is: 14 ₼.
8-Port 10/100Mbps Desktop…
Original price was: 19 ₼.17 ₼Current price is: 17 ₼.
5-Port 10/100/1000Mbps Desktop…
Original price was: 33 ₼.29 ₼Current price is: 29 ₼.
5-Port 10/100/1000Mbps Desktop…
Original price was: 29 ₼.27 ₼Current price is: 27 ₼.
8-Port 10/100/1000Mbps Desktop…
Original price was: 53 ₼.48 ₼Current price is: 48 ₼.
What TP-Link TL-SG1210PP is for
TP-Link TL-SG1210PP is a switch for extending a wired network. People buy one when the router has run out of ports and cameras, computers, a printer, an NVR and access points all need to join the same network. A wired connection is always more stable and lower-latency than Wi-Fi.
Buying advice: take 30–50% more ports than you need today, so you do not have to replace the switch when another camera or computer arrives. If cameras will be connected, choose a model with PoE ports and make sure the power budget (W) exceeds the total draw of those cameras.
Key specifications
| 9× 10/100/1000Mbps RJ45 Ports, 1× 1000Mbps Combo SFP/RJ45 Port | |
| With 2× PoE++ ports and 6× PoE+ ports, transfers data and power on one single cable | |
| Works with IEEE 802.3af/at/bt compliant PDs | |
| 802.1p/DSCP QoS enable smooth latency-sensitive traffic | |
| Supports PoE Power up to 30 W for each PoE+ port and 60 W for PoE++ port | |
| Supports PoE Power up to 123 W for all PoE ports* | |
| Plug and Play, no configuration and installation required | |
| Up to 250m data and power transmitting range under Extend Mode** |
Price in Baku, delivery and installation
The current price on the site is 313 ₼. It includes the official TP-Link warranty, delivery in Baku and shipping to the regions on request.
If you also need installation, our Office network setup service starts from 200 ₼; the site visit and quote in Baku are free and we give a 6-month warranty.
Before you choose
For a comparison with the closest models, a price table and buying advice, see the guide for this category.
A detailed article on this topicHow to Choose a PoE Switch for IP Cameras and Access Points Read →
Frequently asked questions about TP-Link TL-SG1210PP
What is the difference between managed and unmanaged?
An unmanaged switch works the moment you plug it in and needs no configuration — enough for a home or a small office. Managed (and Easy Managed) models add VLANs, QoS, port isolation and monitoring, which you need when the camera network must be separated from the office network or traffic has to be controlled.
Does TP-Link TL-SG1210PP power the cameras?
Only on models with PoE ports. With PoE, a single network cable to the camera is enough — no separate socket. The total power budget of the switch must be higher than the combined draw of the cameras.
Do you build office networks?
Yes. Our office network service covers cabling, placing switches and access points, and configuring VLANs and Wi-Fi. The site visit and quote in Baku are free.
What about warranty and delivery?
The device is sold by the official TP-Link partner in Azerbaijan with official warranty. Delivery in Baku is available and shipping to the regions is possible. If you need installation, see our services page.
