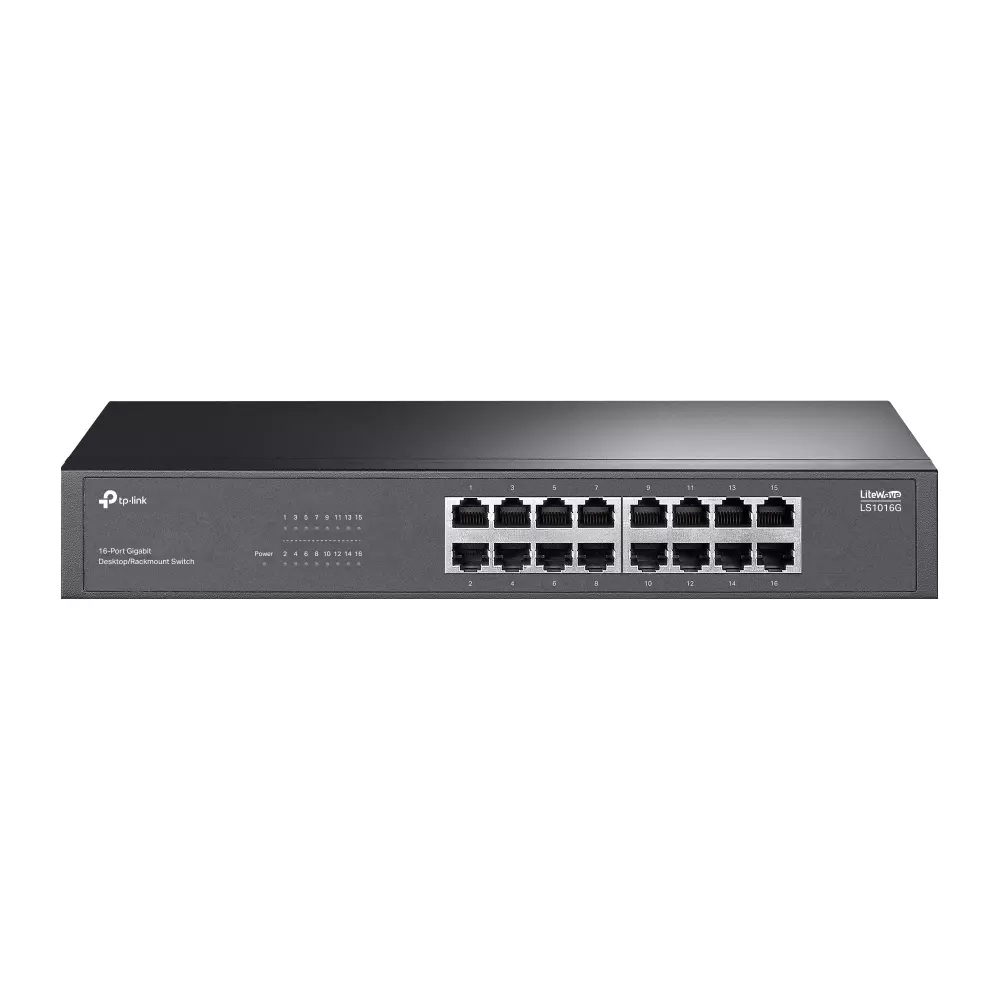

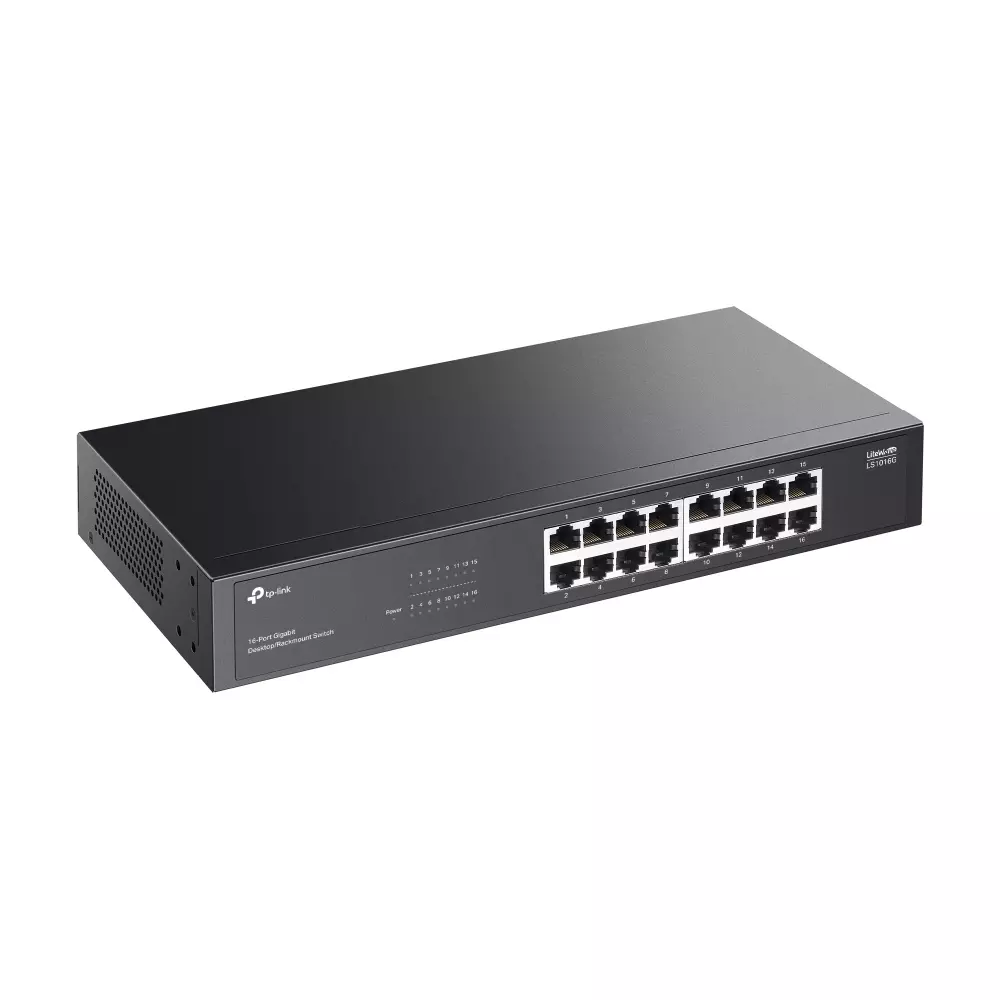

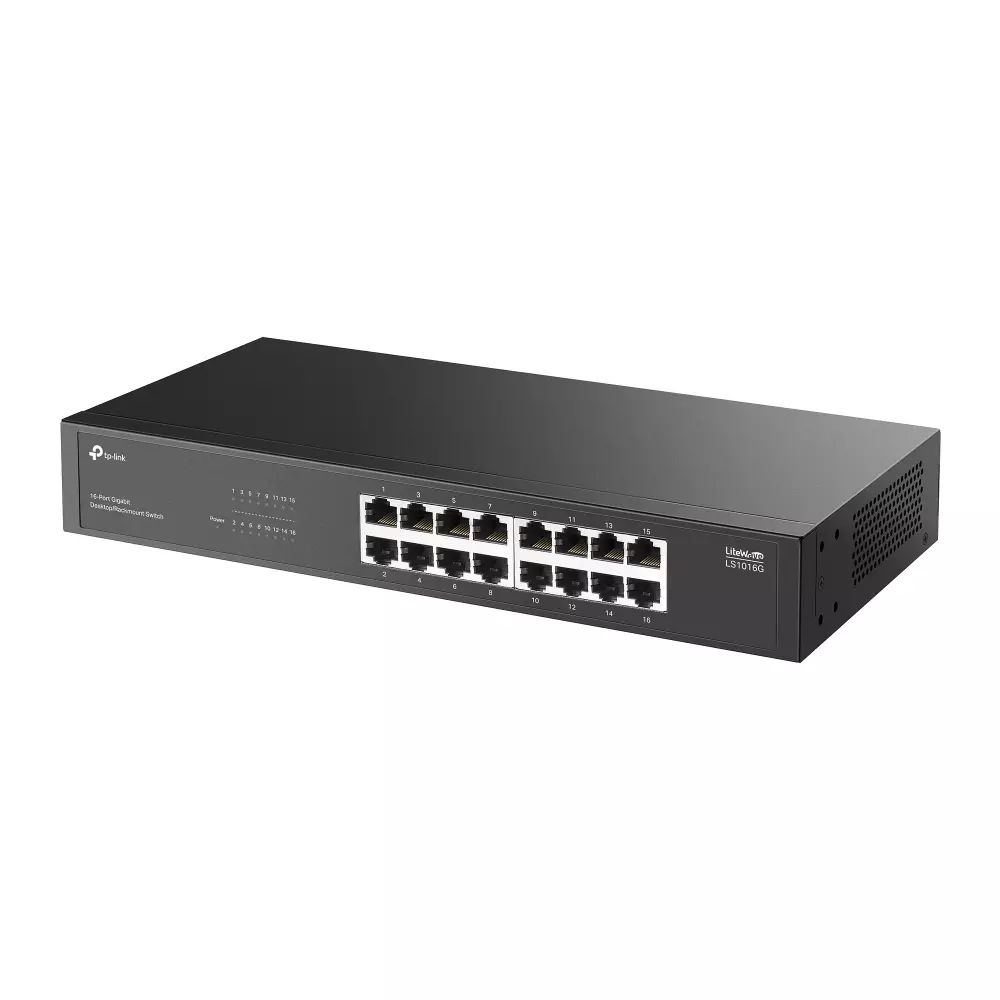

TP-Link LS1016G

16-Port Gigabit Desktop/Rackmount Switch

Original price was: 137 ₼.Current price is: 124 ₼.

Birbank logo
Installment payment calculator with Birbank
Installment payment terms apply to the non-discounted price
0%
2 mon.
0%
3 mon.
0%
4 mon.
0%
5 mon.
0%
6 mon.
Monthly payment 68.5 ₼
Need installation too?Site visit and quote in Baku are freeWi-Fi and router installation →
Partner pricing›Expert help›

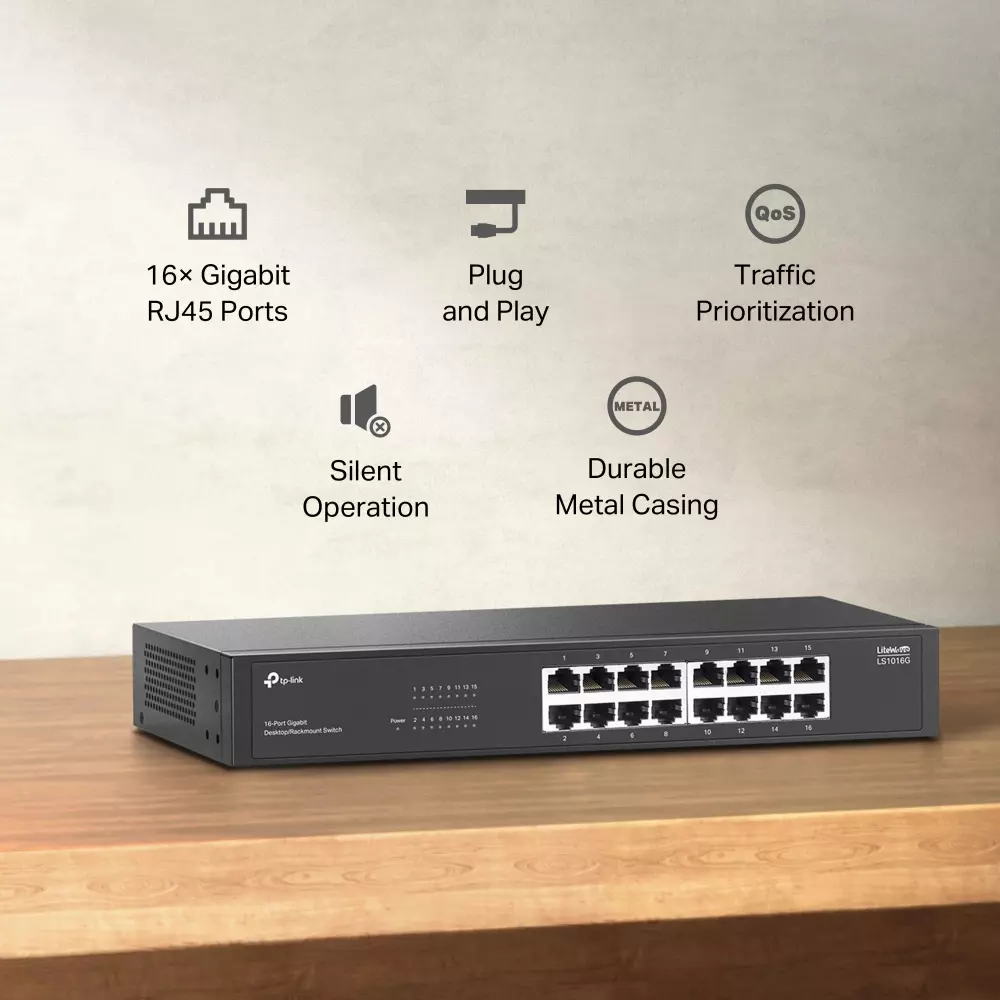

TP-Link LS1016G is an unmanaged Gigabit switch from the LiteWave series. 16 ports at 10/100/1000 Mbps expand an office or home network by simply plugging in a cable.

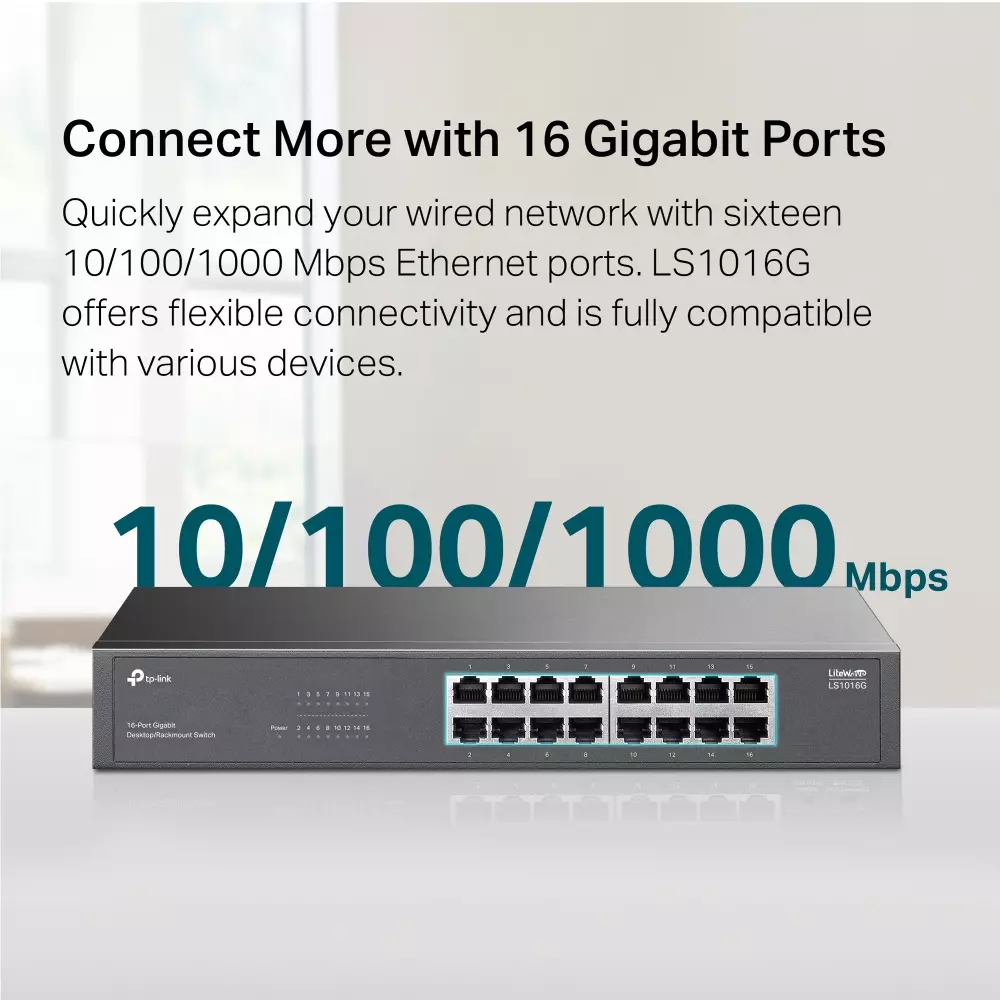

  • 16× Gigabit RJ45 ports — auto-negotiation and Auto MDI/MDIX on every port, no need to pick a cable type;

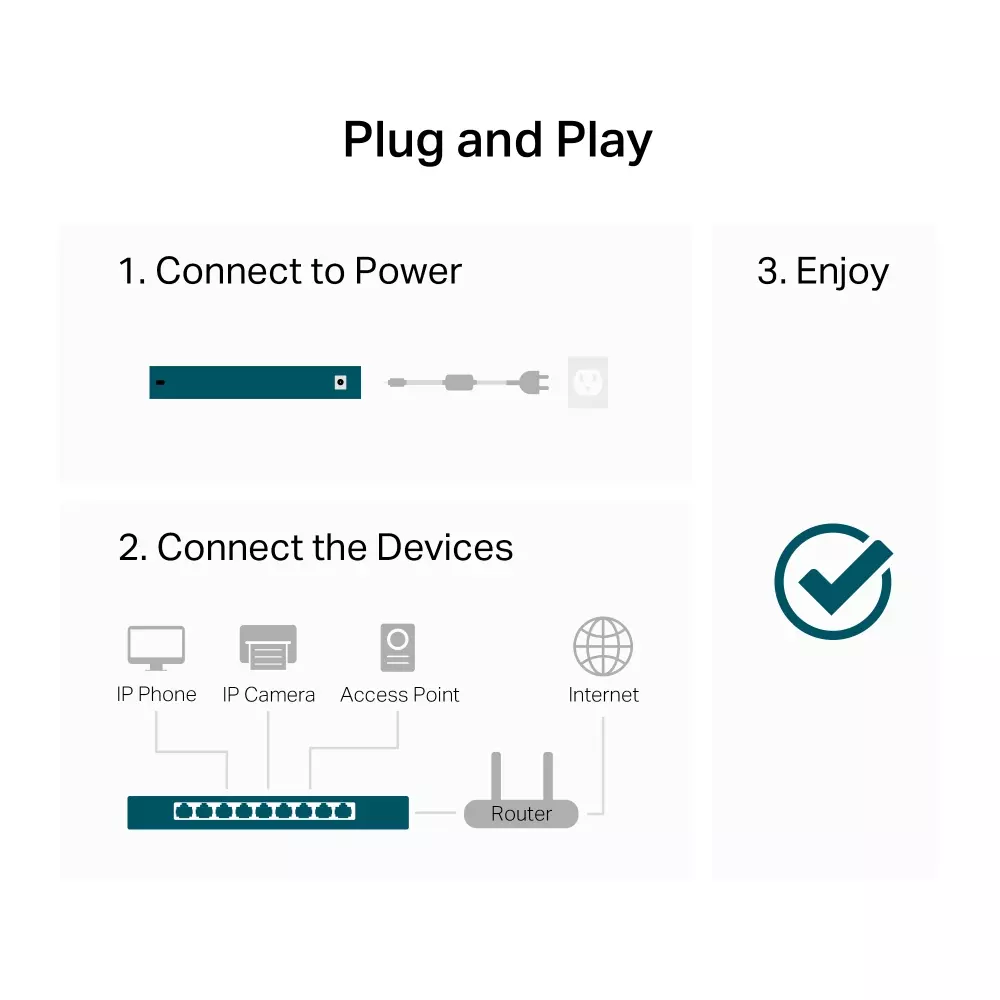

  • Plug & play — no configuration, drivers or software required;
  • Automatic MAC address learning — traffic goes only to the port that needs it, keeping the network clear;
  • QoS prioritisation — latency-sensitive voice and video traffic passes smoothly;

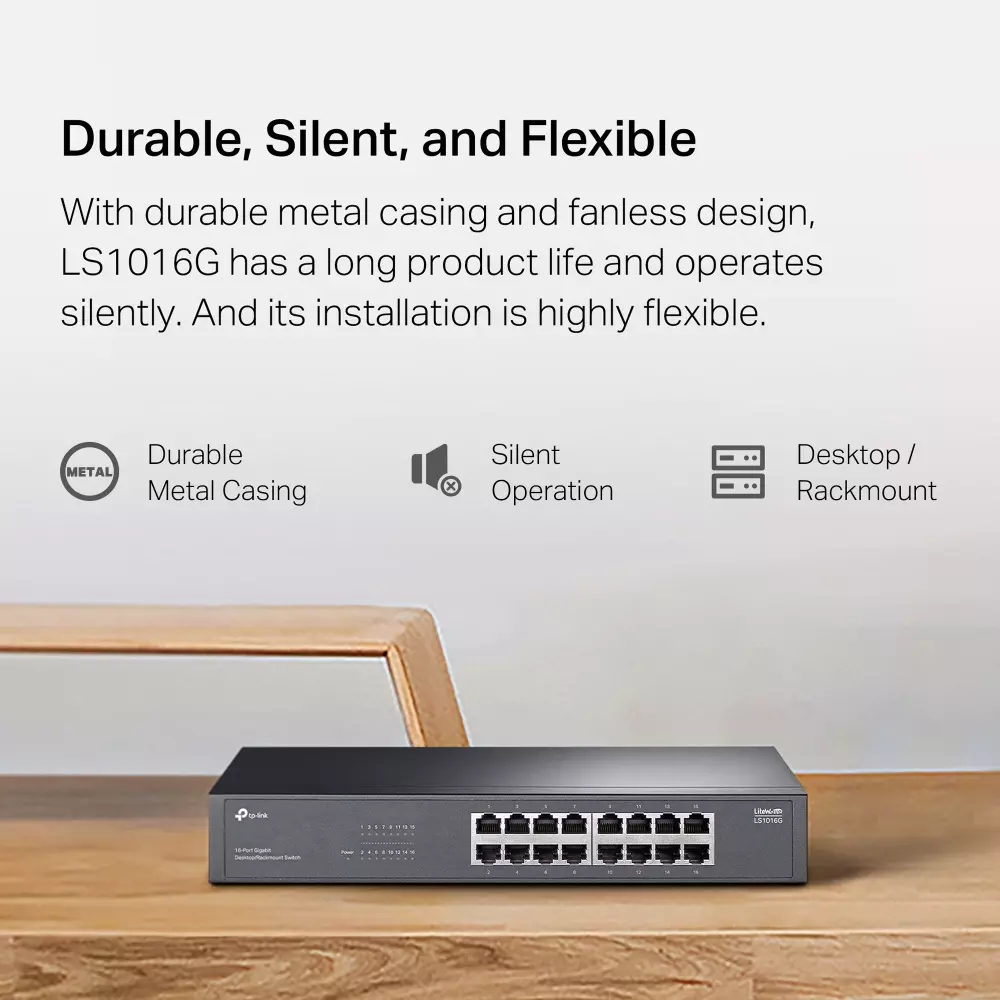

  • Fanless design — completely silent operation, suitable for a meeting room or a desk;
  • Durable metal housing — better heat dissipation and a longer service life.

Intended for connecting computers, printers, IP cameras and access points in office, retail and home networks. Supplied with the official TP-Link partner warranty in Azerbaijan.

HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3p
Interface 16× 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX: UTP category 5 or above cable (maximum 100m)
• 1000BASE-T: UTP category 5e or above cable (maximum 100m)
Fan Quantity Fanless

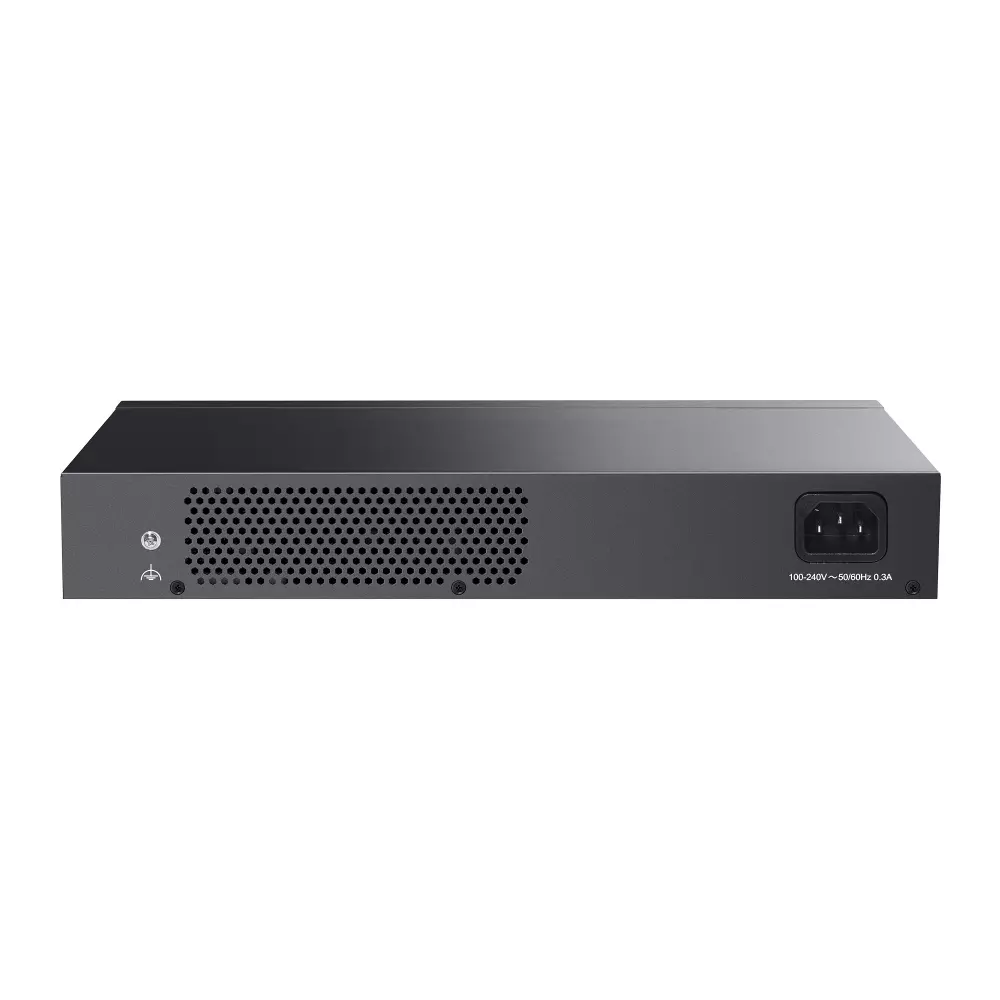

Power Supply 100-240V~50/60Hz, 0.3A
Dimensions ( W x D x H ) 11.6 × 5.5 × 1.7 in. (294 × 140 × 44 mm)
Max. Power Consumption 7.2 W (110V/60Hz)
Max Heat Dissipation 24.42 BTU/h (110V/60Hz)
PERFORMANCE
Jumbo Frame 15 KB
Transmission Method Store-and-Forward
Switching Capacity 32 Gbps
Packet Forwarding Rate 23.808 Mpps
MAC Address Table 8K
OTHERS
Certification FCC, CE, RoHs
Package Content 16-Port Gigabit Desktop/Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
Environment Operating Temperature: 0℃~50℃ (32℉~122℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing

Reviews

There are no reviews yet.

Be the first to review “TP-Link LS1016G”

Your email address will not be published. Required fields are marked *

Related Products

What TP-Link LS1016G is for

TP-Link LS1016G is a switch for extending a wired network. People buy one when the router has run out of ports and cameras, computers, a printer, an NVR and access points all need to join the same network. A wired connection is always more stable and lower-latency than Wi-Fi.

Buying advice: take 30–50% more ports than you need today, so you do not have to replace the switch when another camera or computer arrives. If cameras will be connected, choose a model with PoE ports and make sure the power budget (W) exceeds the total draw of those cameras.

Key specifications

16× Gigabit RJ45 portsauto-negotiation and Auto MDI/MDIX on every port, no need to pick a cable type;
Plug & playno configuration, drivers or software required;
Automatic MAC address learningtraffic goes only to the port that needs it, keeping the network clear;
QoS prioritisationlatency-sensitive voice and video traffic passes smoothly;
Fanless designcompletely silent operation, suitable for a meeting room or a desk;
Durable metal housingbetter heat dissipation and a longer service life.

Price in Baku, delivery and installation

The current price on the site is 124 ₼. It includes the official TP-Link warranty, delivery in Baku and shipping to the regions on request.

If you also need installation, our Office network setup service starts from 200 ₼; the site visit and quote in Baku are free and we give a 6-month warranty.

Before you choose

For a comparison with the closest models, a price table and buying advice, see the guide for this category.

A detailed article on this topicHow to Choose a PoE Switch for IP Cameras and Access Points Read →

Frequently asked questions about TP-Link LS1016G

What is the difference between managed and unmanaged?

An unmanaged switch works the moment you plug it in and needs no configuration — enough for a home or a small office. Managed (and Easy Managed) models add VLANs, QoS, port isolation and monitoring, which you need when the camera network must be separated from the office network or traffic has to be controlled.

Does TP-Link LS1016G power the cameras?

Only on models with PoE ports. With PoE, a single network cable to the camera is enough — no separate socket. The total power budget of the switch must be higher than the combined draw of the cameras.

Do you build office networks?

Yes. Our office network service covers cabling, placing switches and access points, and configuring VLANs and Wi-Fi. The site visit and quote in Baku are free.

What about warranty and delivery?

The device is sold by the official TP-Link partner in Azerbaijan with official warranty. Delivery in Baku is available and shipping to the regions is possible. If you need installation, see our services page.
