| Video and Audio | |
|---|---|
| IP Video Input | 32-Channel |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 320 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840×2160/30Hz,1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920×1080/60Hz,1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |

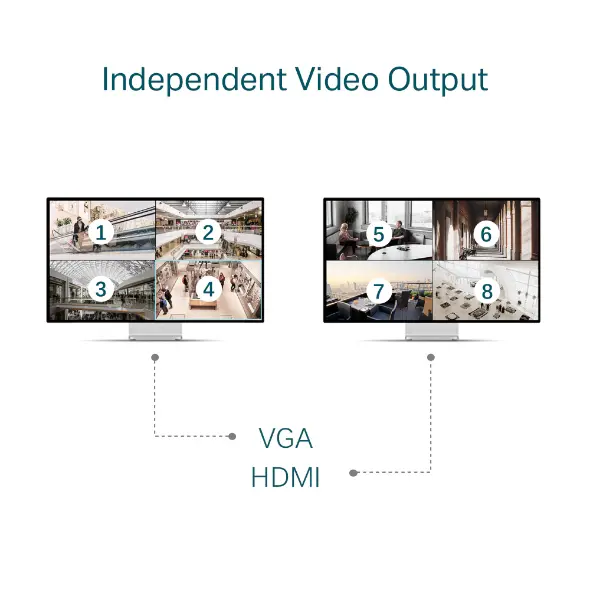

| Video Output Mode | HDMI/VGA Independent Output |
| Multi-View Display | 1/4/6/8/9/16/25/32/36 |
| DECODING | |
|---|---|
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-Channel |
| Capability | 16-ch @ 1080p (30 fps), 8-ch @ 4MP (30 fps), 4-ch @ 8MP (30 fps) |
| Record Management | |
|---|---|
| Record Mode | • Manual Recording • Scheduling Recording • Motion Detection Recording |
| Playback Mode | • Instant Playback • Regular Playback • Tag Playback • Event Playback |
| Backup Mode | • Regular Backup • Video Clip Backup |
| Playback Function | • Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off |
| NETWORK | |
|---|---|
| Protocol | UPnP (Plug and Play), NTP (Network Timing), TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF, CGI |

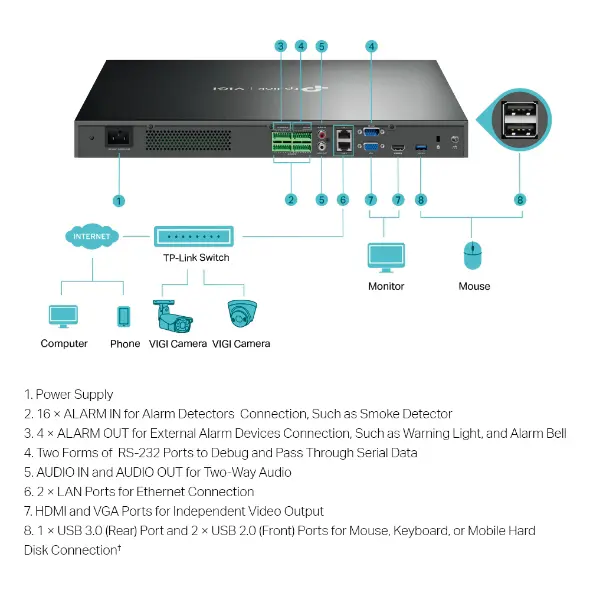

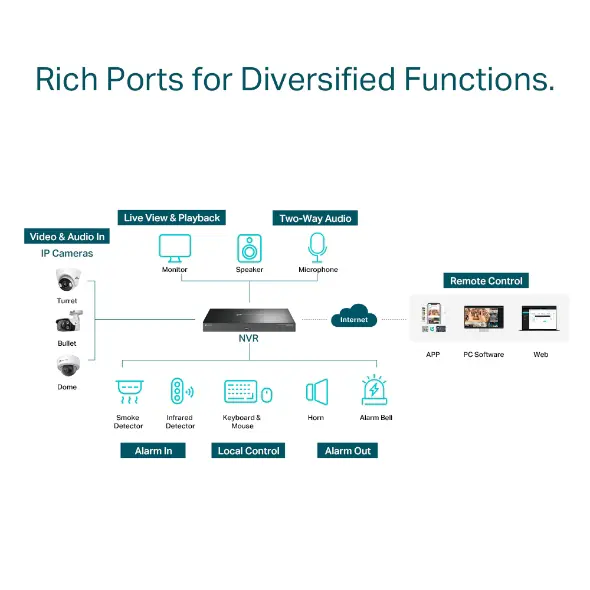

| External Interface | |
|---|---|
| Network Interface | 2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2 Front USB 2.0 Ports, 1 Rear USB 3.0 Port |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | 16/4 |
| Serial Interface | 1, RS232 |
| Power | 1× AC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | N/A |
| HDMI | 1 |
| VGA | 1 |
| HARD DISK | |
|---|---|
| SATA | 4 SATA Interfaces |
| Capacity | Up to 10 TB Capacity for Each HDD* |
| Alarm | |
|---|---|
| General Alarm | • Motion Detection • Video Tampering • Line-Crossing Detection • Intrusion Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection |
| Anomaly Alarm | • Video Loss • Offline and IP Conflict • Disk Exception • Login Exception • Fan Exception |
| Alarm Linkage | • Recording • White Light Alarm • Buzzer • Log • Audible Alarm |
| GENERAL | |
|---|---|
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Package Contents | • VIGI Network Video Recorder • Mouse • Installation Guide • Power Cord • HDD Power Cables • HDD Data Cables • Terminal Blocks • Mounting Brackets • Screws • Rubber Feet |
| Working Temperature | • NVR: -10–55 °C • Power Adapter: 0–40 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
| Dimensions( W X D X H ) | 440 × 330 × 44 mm |
| External Power Supply | 100-240 VAC, 50 to 60HZ, 1.5A |
| Net Weight | 4.0 Kg# |
| Gross Weight | 5.2 Kg# |
| Power Supply | 100-240 VAC, 50 to 60HZ, 1.5A |
| Power Consumption | • 5 W (Without Disk) • 48 W (With Disk) |
| Certifications | CE, EAC, UKCA, RCM, Triman, RoHS, VCCI, FCC, IC, HDMI |
