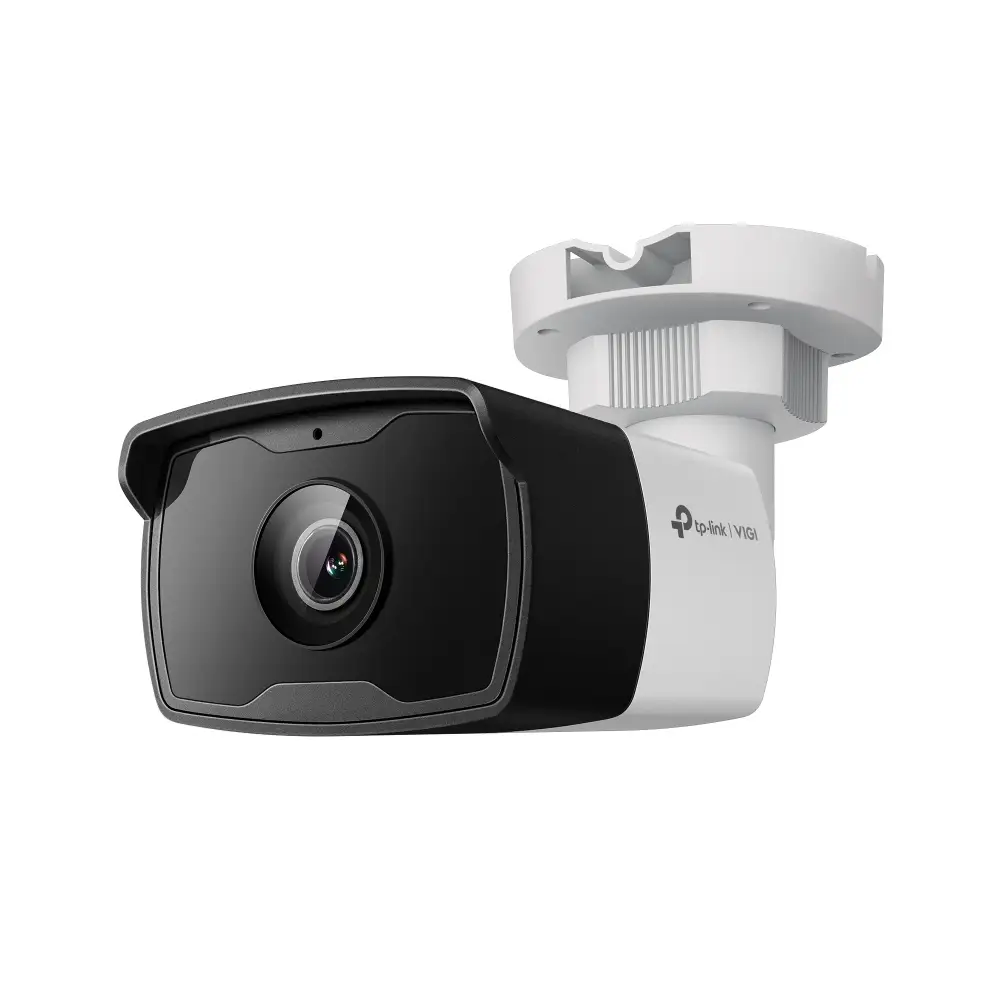

TP-Link VIGI C340I
VIGI 4MP Outdoor IR Bullet Network Camera
The TP-Link VIGI C340I is a 4 MP network camera for monitoring offices, shops, warehouses and yards. Its 1/3-inch progressive scan CMOS sensor delivers clear colour footage by day and switches to infrared at night: minimum illumination is 0.01 lux in colour mode, and with the IR illuminator on the camera keeps recording in complete darkness, at 0 lux.
The camera uses a fixed-focus lens and comes in 2.8 mm, 4 mm and 6 mm versions. The wide-angle 2.8 mm option (88.8° horizontal) suits small rooms and entrances, while the 6 mm option (49.8°) is better when a distant area needs more detail. By the DORI measure, the 2.8 mm version detects a subject at 60 metres and observes it at 25 metres.
The VIGI C340I tells people apart from vehicles, which cuts down on false alarms and makes searching recorded footage easier. A built-in microphone captures audio, and H.265+ compression keeps a longer archive on the same storage. The IP67 housing is sealed against dust and rain, so the camera can be installed outdoors.
- 4 MP resolution
- 1/3” progressive scan CMOS, 0.01 lux
- Fixed-focus lens: 2.8 / 4 / 6 mm
- Infrared night vision
- Human and vehicle classification
- Built-in microphone
- IP67 dust and water protection
- H.265+ compression
The camera works with VIGI NVR recorders and the VIGI Security Manager software. Sold in Baku with official partner warranty.
| CAMERA | |
|---|---|
| Image Sensor | 1/3” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | Color: 0.01 Lux; 0 Lux with IR |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| LENS | |
|---|---|
| Type | Fixed Focal Lens |
| Focal Length | 2.8 mm/4 mm/6 mm |
| Aperture | • 2.8 mm: F2. 2 • 4 mm: F2.0 • 6 mm: F2.0 |
| FOV | • 2.8 mm: Horizontal FOV: 88.8°, Vertical FOV: 48.9°, Diagonal FOV: 106.5° • 4 mm: • 6 mm: |
| Lens Mount | M12 |
| DORI Distance | • 2.8 mm: Detect: 60 m (197 ft) Observe: 25 m (82 ft) Recognize: 12 m (39 ft) Identify: 6 m (20 ft) • 4 mm: • 6 mm: |
| Angle Adjustment (Manual) | |
|---|---|
| Range | • Pan: 0° to 360° • Tilt: 0° to 90° • Rotation: 0° to 360° |
| ILLUMINATOR | |
|---|---|
| IR LED | • Quantity: 2 • Range: 50m • Wavelength: 850nm |
| White LED | N/A |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
|---|---|
| Max. Resolution | 2560 × 1440 |
| Main Stream | • Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | • Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | • Main Stream: 256 Kbps to 4 Mbps • Sub-Stream: 64 Kbps to 512 Kbps |
| Image | |
|---|---|
| Image Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software • Rotation(90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | |
|---|---|
| Audio Communication | N/A |
| Audio Input | Yes |
| Audio Output | N/A |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| NETWORK | |
|---|---|
| Protocol | • TCP/IP • UDP • ICMP • HTTP • HTTPS • DHCP, DNS, RTSP • NTP • UPnP • SSL/TLS • FTP/SFTP • RTP • IPv4 • IPv6 • ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | • Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| ALARM AND EVENT MANAGEMENT | |
|---|---|
| Smart Event | • Human & Vehicle Classification • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned/Removal Detection • Abnormal Sound Detection • People Detection • Vehicle Detection |
| Basic Event | • Motion Detection • Video Tampering Detection • Exception ( Illegal Login) |
| Alarm Linkage | Message Push |
| Linkage Method | N/A |
| Output Notification | Message Push |
| INTERFACES | |
|---|---|
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | N/A |
| Power | DC Power Port |
| On-board Storage | N/A |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | N/A |
| Audio | N/A |
| GENERAL | |
|---|---|
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Contents | • VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories |
| Material | Plastic |
| Net Weight | 0.28 Kg |
| Gross Weight | 0.43 Kg |
| Power Supply | • 12V DC ± 5%, Max. 5 W, 5.5mm Coaxial Power Plug • PoE: 802.3af/at, class 0, Max. 5.5 W |
| Protection | IP67 Waterproof |
| Product Dimensions (L x W x H) | 78.50 × 188.03 × 71.55 mm (3.09 × 7.40 × 2.82 in) |
| Certifications | CE, NTRA, VCCI, BSMI |
Related Products
TP-Link VIGI C340I — surveillance camera for business
TP-Link VIGI C340I belongs to the TP-Link VIGI line: a surveillance camera for shops, warehouses, offices and production sites. Unlike home cameras it is built around an NVR recorder, power over a single cable via PoE, and continuous long-term recording.
Who it suits: sites with four cameras or more, shop chains that need several locations on one NVR, warehouses and offices recording around the clock. Together with a PoE switch you no longer need a separate power supply at every camera.
Key specifications
| 4 MP resolution | |
| 1/3” progressive scan CMOS, 0.01 lux | |
| Fixed-focus lens | 2.8 / 4 / 6 mm |
|---|---|
| Infrared night vision | |
| Human and vehicle classification | |
| Built-in microphone | |
| IP67 dust and water protection | |
| H.265+ compression | |
Price in Baku, delivery and installation
Ask us for the current price and stock — every device is sold with the official TP-Link warranty and delivery in Baku is available.
If you also need installation, our Camera installation service starts from 40 ₼; the site visit and quote in Baku are free and we give a 6-month warranty.
Before you choose
For a comparison with the closest models, a price table and buying advice, see the guide for this category.
A detailed article on this topicWhat Is VIGI Security Manager? Monitor and Set Up VIGI Cameras on a PC Read →
Frequently asked questions about TP-Link VIGI C340I
Do I have to buy an NVR for TP-Link VIGI C340I?
Not strictly — the camera can record to a memory card. But from four cameras up, an NVR keeps the archive in one place, makes searching through recordings far easier, and preserves the footage even if a camera is damaged. On a larger site the NVR and the PoE switch are planned together.
What is PoE and why does it matter?
PoE carries both data and power over one network cable. That means no separate socket next to the camera, so the installation is cheaper and tidier. The important part is choosing a PoE switch with enough power budget (W) for the number of cameras.
Do you design the system for a site?
Yes. The number of cameras, viewing angles, cable routes and NVR capacity are decided after a site visit. The visit and the quote are free anywhere in Baku.
What about warranty and delivery?
The device is sold by the official TP-Link partner in Azerbaijan with official warranty. Delivery in Baku is available and shipping to the regions is possible. If you need installation, see our services page.
